Setting a static IP address on Impinj Speedway RAIN RFID reader

You may want to change the IP address of the Speedway reader from the default DHCP to a static address. For this procedure, you will need to connect to either the Ethernet port or the Console port on the Speedway reader.

  1. Download PuTTY from the link below, if you have not already done so:
    http://www.putty.org/
  2. Launch PuTTY. If prompted, run it as administrator.
  3. In "PuTTY Configuration" screen, follow the appropriate steps depending on which port on the Speedway reader you are connected to:

    A) If you're connected to the Ethernet port on the Speedway reader,
        A-1) Choose "SSH" Connection type (default).
        A-2) Enter the Speedway reader's hostname in the "Host Name (or IP address)" field. The  hostname for the Speedway reader is: speedwayr-xx-yy-zz where xx-yy-zz is the last three sections of the Speedway reader's MAC address.

    B) If you're connected to the Console port on the Speedway reader,
        B-1) Choose "Serial" for Connection type.
        B-2) In "Serial line" field, enter the COM port number (<- how to find it?)
        B-3) In "Speed" field, enter 115200.
  4. Click "Open" button.
  5. You should get an RShell login prompt. If you see a blank screen, hit the "Enter" key once.
  6. Type the following login and password information:
        Login: root
        Password: impinj
        (the password may not be shown as you type them)

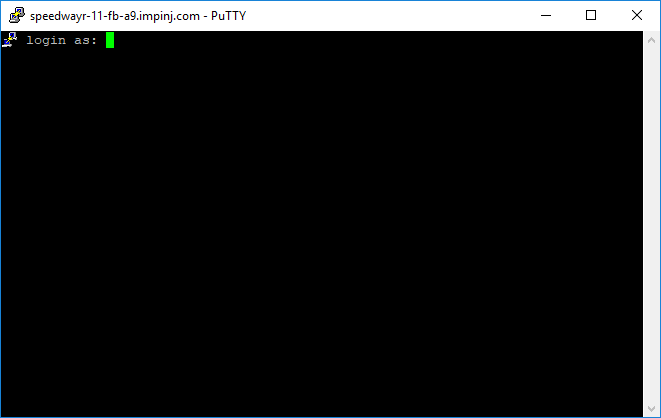

  7. Once you've successfully logged in, you will see something similar to the following. You are now logged into the reader's RShell interface.
  8. To find out the Speedway reader's IP address, type the following at the RShell prompt:

        > show network summary

    The results (as shown below) indicate a couple of things:
    a) ipAddressMode = 'Dynamic' means this Speedway reader is set to acquire its IP address via DHCP. If this Speedway reader was set to a static IP address, it would say 'Static'.
    b) ipAddress = '192.168.0.20' indicates this is the IP address for this Speedway reader.
  9. To change the IP address, type the following at the RShell prompt:
    a) To set the Speedway reader to DHCP:

            > config network ip dynamic

    b) To set the Speedway reader to a static IP address:

            > config network ip static xxx.xxx.xxx.xxx

    ("xxx"s are values between 1 and 255. For example, "config network ip static 192.168.0.20")

    --or--

            > config network ip static xxx.xxx.xxx.xxx  xxx.xxx.xxx.xxx  xxx.xxx.xxx.xxx  xxx.xxx.xxx.xxx

    (for example, if you type:

    > config network ip static 192.168.0.20 255.255.255.0 192.168.0.1 192.168.0.255

    you are configuring the IP address, Netmask, Gateway, and Broadcast Address respectively, separated by a space character)
    NOTE: consult the RShell Reference Manual for additional details.
  10. To exit from the RShell interface, type the following at the RShell prompt:

    > exit



How to find COM port number

  1. Press the Windows key and R at the same time. Run dialog opens.
  2. Enter devmgmt.msc and click OK button. If prompted, choose Yes.
  3. In Device Manager, expand Ports (COM & LPT).

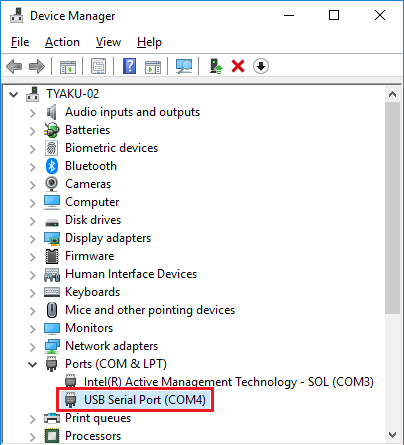

  4. Find "USB Serial Port (COMx) entry. Use this COM port number in PuTTY's serial connection (in the example below, it is COM4).
